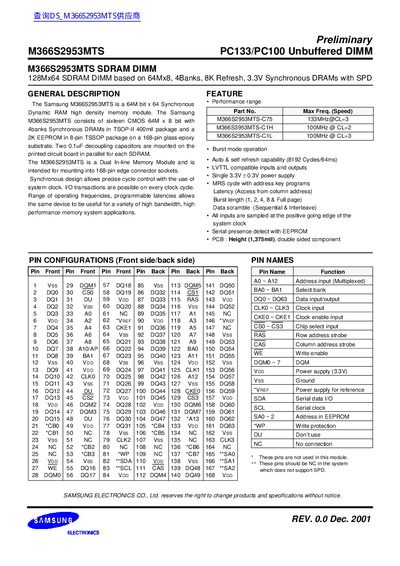

The Samsung M366S2953MTS is a 64M bit x 64 Synchronous Dynamic RAM high density memory module. It has a synchronous design that allows precise cycle control. It can be used for a variety of high bandwidth, high performance memory system applications.
The Samsung M366S2953MTS is a high-density synchronous dynamic RAM memory module designed for mounting into 168-pin edge connector sockets. It consists of sixteen CMOS 64M x 8 bit Synchronous DRAMs with four banks, utilizing TSOP-II packages and an EEPROM for Serial Presence Detect (SPD). The module supports operating frequencies up to 133MHz.
| Memory Capacity | 128M x 64 SDRAM DIMM |
|---|---|
| Operating Frequency (Max) | 133MHz |
| Supply Voltage | 3.3V + 0.3V |
| Package Type | 168-pin glass-epoxy substrate |
| Refresh Rate | 8K Refresh (8192 Cycles/64ms) |
The M366S2953MTS-C75 variant supports a maximum frequency of 133MHz.
The recommended operating conditions are from 0 to 70°C.
