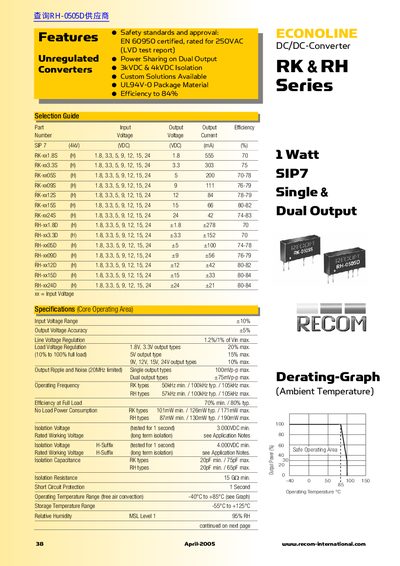

This document provides technical specifications and performance data for the Recom RK and RH series of DC/DC converters. These are unregulated, single or dual-output devices available in a SIP7 package with up to 4kV isolation.
The datasheet details core operating parameters such as input voltage ranges, output accuracy, efficiency ratings (up to 84%), and electrical characteristics including ripple, noise, and isolation capacitance. It also includes typical performance graphs for various models under different load conditions.
| Output Power | 1 Watt |
|---|---|
| Package Type | SIP7 |
| Isolation Voltage (Standard) | 3kVDC |
| Isolation Voltage (H-Suffix) | 4kVDC |
| Operating Temperature Range | -40°C to +85°C |
| Output Ripple and Noise (20MHz limited) | 100mVp-p max. |
| Operating Frequency | 50kHz min. / 100kHz typ. / 105kHz max. |
| Efficiency at Full Load | 70% min. / 80% typ. |
The typical efficiency at full load is 80%, with a minimum of 70%.
The available input voltages include 1.8V, 3.3V, 5V, 9V, 12V, 15V, and 24V.
The isolation resistance is a minimum of 15 GΩ.
