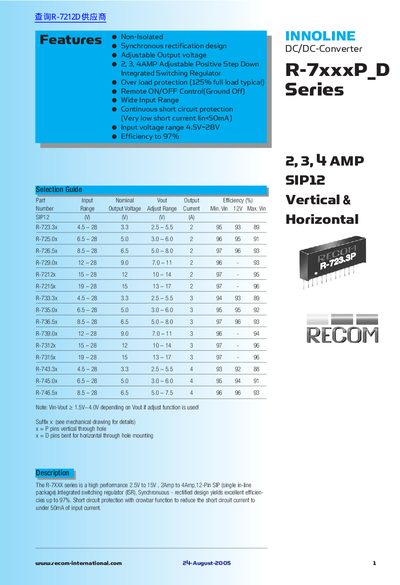

The R-7xxxP_D Series is 2,3,4 AMP SIP12 Vertical & Horizontal INNOLINE DC/DC-Converter. It features non-isolated, synchronous rectification design, adjustable output voltage, 2,3,4AMP adjustable positive step down integrated switching regulator, overload protection(125% full load typical), remote ON/OFF control(Ground Off), wide input range, continuous short circuit protection(Very low short current Iin<50mA), input voltage range 4.5V~28V, efficiency up to 97% etc.
The document describes the INNOLINE DC/DC Converter R-7xxxP_D Series from Recom International. This series features a synchronous rectified design with excellent efficiency up to 97% and includes short circuit protection with a crowbar function.
Available in 2Amp, 3Amp, and 4Amp variants (R-72xx, R-73xx, R-74xx), the converters are housed in a 12-Pin SIP package. They support output voltages ranging from 2.5V to 15V with adjustable ranges depending on the specific model.
| Output Voltage Range | 2.5V to 17V |
|---|---|
| Operating Temperature Range | -40°C +85°C |
| Short Circuit Input Current | under 100mA |
| Switching Frequency | 270 to 330kHz |
The synchronous rectified design yields excellent efficiencies up to 97%.
The device reduces short circuit current to under 50mA of input current.
