This PDF file introduces the features and characteristics of RECOM POWERLINE H series DC/DC converters, including input voltage range, output voltage, output current, efficiency, input/output isolation, and maximum capacitive load.

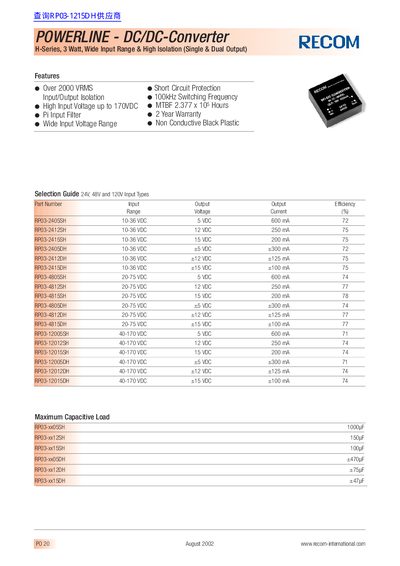

The document describes the Recom Powerline H-Series of DC/DC converters. These units feature a wide input voltage range (up to 170VDC), short circuit protection, and an operating temperature range from -25°C to +71°C. They are designed for free-air convection cooling.
| Power Output | 3 Watt |
|---|---|
| Switching Frequency | 100kHz |
| Input Voltage Range (24V types) | 10-36 VDC |
| Input Voltage Range (120V types) | 40-170 VDC |
| Isolation Voltage | 2kV RMS |
| Operating Temperature Range | -25°C to +71°C |
| Case Material | Non-Conductive Black Plastic |
The nominal range is up to 170 VDC.
Yes, the converters feature continuous short circuit protection.
