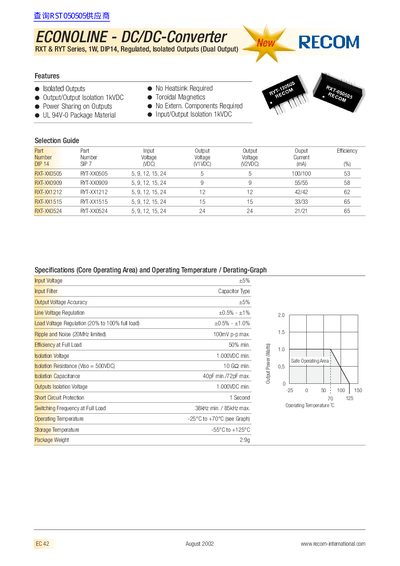

RECOM ECONOLINE - DC/DC-Converter RXT RYT Series 1W DIP14 Regulated Isolated Outputs (Dual Output)

This data sheet provides the specifications of ECONOLINE - DC/DC-Converter RXT & RYT Series 1W.

Brand: Recom
Category: DC/DC Converter
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 120 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: FED8F883FBCAE66DEEF293B8A410C503
PDF: RECOM ECONOLINE - DC/DC-Converter RXT RYT Series 1W DIP14 Regulated Isolated Outputs (Dual Output) PDF

About this manual

The document describes the Recom ECONOLINE RXT and RYT Series of regulated, isolated DC/DC converters. These devices feature dual outputs with power sharing capabilities and are designed to operate without a heatsink. The series includes various input/output voltage combinations such as 5V/5V, 9V/9V, 12V/12V, 15V/15V, and 5V/24V.

What's inside

Features
Selection Guide
Specifications
Package Style and Pinning

Specifications

Power Output	1W
Package Type	DIP14 / SIP7
Output Configuration	Dual Output
Input/Output Isolation Voltage	1kVDC min.
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-55°C to +125°C

Frequently asked questions

What is the maximum input voltage for these converters?

The input voltage must not exceed +5% of the rated value.

How much isolation voltage can these units withstand?

The output to output and input to output isolation is 1,000VDC minimum.

What are the operating temperature limits for normal use?

The units operate from -25°C to +70°C, with derating required at higher temperatures.
