This document describes the features and characteristics of EU 5 EUROLINE DC/DC converters, including wide temperature performance, 1kVDC isolation, high efficiency, standard pinout, etc.

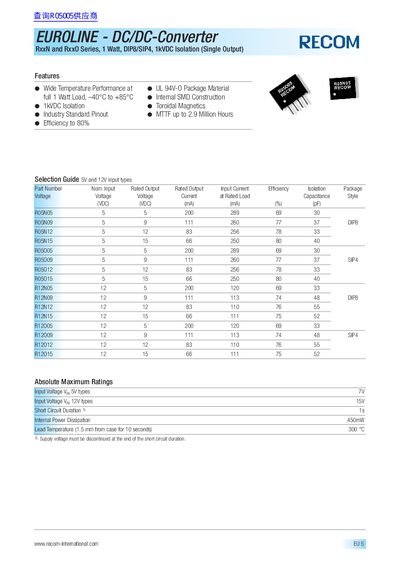

The document describes the EUROLINE RxxN and Rxx0 Series of single-output DC/DC converters manufactured by RECOM. These devices provide 1 Watt of power with 1kVDC isolation, available in DIP8 or SIP4 packages. They are designed for wide temperature performance ranging from -40°C to +85°C.
| Power Output | 1 Watt |
|---|---|
| Isolation Voltage | 1kVDC |
| Package Types | DIP8/SIP4 |
| MTTF (at -40°C) | 2.9 Million Hours min. |
| Efficiency | up to 80% |
The maximum input voltage for the 12V types is 13.2VDC.
The minimum isolation voltage is 1000VDC when flash tested for one second.
The deviation from nominal is between -5% and +10% at 100% total output current.
