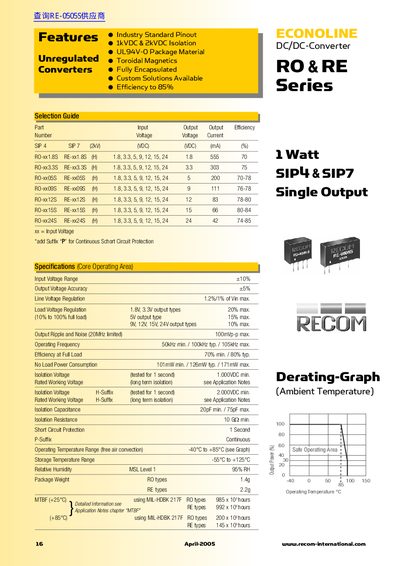

RECOM 1 Watt SIP4 SIP7 Single Output (1)
This document is a product specification sheet for the Recom RE-0505S, a 1W SIP7 single-output DC/DC converter. It features 2kV isolation, 70-85% efficiency, and operates from 1.8V to 24V input. The device is fully encapsulated with toroidal magnetics and UL94V-0 package material. It supports continuous short-circuit protection with the 'P' suffix and operates from -40°C to +85°C. The RE-0505S is part of the RO/RE series with similar models like RE-0905S and RE-1205S.
The document includes efficiency and load regulation curves, isolation voltage and capacitance specs, and pin configurations for both 4-pin SIP and 7-pin SIP packages. It also lists MTBF ratings and recommended footprint details for PCB layout.
Recom SIP7 specifications
| Input Voltage Range | +10% |
|---|---|
| Output Voltage Accuracy | +5% |
| Efficiency at Full Load | 70% min. / 80% typ. |
| Isolation Voltage | 2.000VDC min. (tested for 1 second) |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 7-pin SIP |
