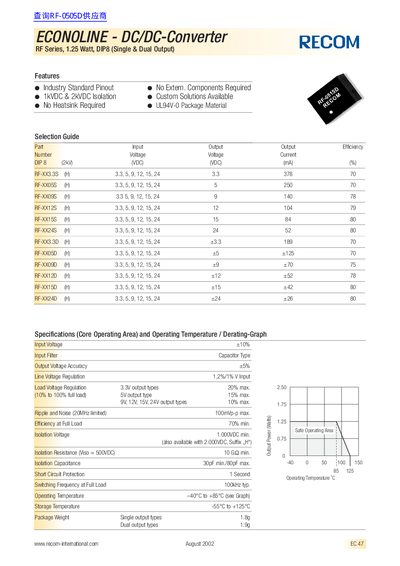

This document introduces the features and characteristics of the ECONOLINE - DC/DC-Converter RF series products, specifically the EC 47 model. These products have industry standard pinout, 1kVDC and 2kVDC isolation, no heatsink required, and no external components required. Custom solutions are available for these products.
This document provides technical specifications for the Recom ECONOLINE RF Series DC/DC converters. The series includes 1.25 Watt DIP8 packages available in both single and dual output configurations, designed for applications requiring industry-standard pinouts and high isolation.
| Power | 1.25 Watt |
|---|---|
| Package | DIP8 |
| Isolation Voltage | 1,000VDC min. |
| Operating Temperature | -40°C to +85°C |
| Switching Frequency | 100kHz typ. |
| Efficiency | 70% min. |
No, the RF Series does not require a heatsink.
No external components are required for the RF Series.
