This document describes the features and characteristics of the RP50-S series 50W single output INNOLINE DC/DC converter, including output current, input/output isolation, adjustable output voltage, no minimum load, under-voltage lockout, etc.

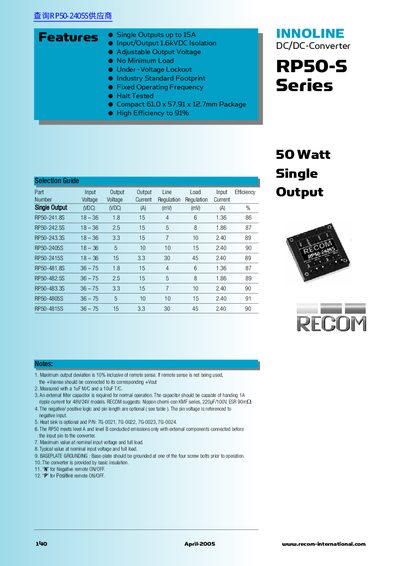

This document is a datasheet for the Recom RP50-S Series of 50 Watt single output DC/DC converters. It provides detailed electrical specifications, including input voltage ranges of 18-36V and 36-75V, and output power capabilities up to 50W with efficiencies reaching 91%.
| Continuous Output Power | 50W max. |
|---|---|
| Input Voltage Range | 18 - 36, 36-75VDC |
| Operating Temperature Range | -40°C to +100°C |
| Isolation Voltage Input to Output | 1,600VDC min. |
| Efficiency | up to 91% |
The maximum continuous output power is 50W.
Yes, it supports both positive and negative logic remote ON/OFF control.
The typical operating frequency is 300KHz.
