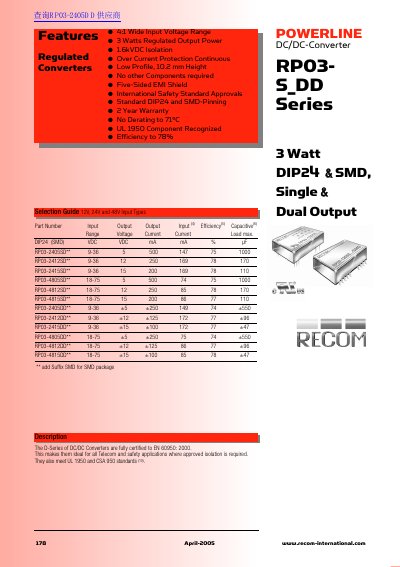

This document describes the features and characteristics of Recom International's 3 Watt DIP24 & SMD, Single & Dual Output POWERLINE DC/DC Converters. These converters have a wide input voltage range of 4:1, 3 watts regulated output power, 1.6kVDC isolation, continuous over current protection, low profile, five-sided EMI shield, international safety standard approvals, standard DIP24 and SMD-pinning, 2 year warranty, no derating to 71°C, UL 1950 component recognized, and efficiency up to 78%.
This datasheet details the RP03-S_DD Series DC/DC converters from Recom, offering 3W regulated output power, 4:1 input voltage range, and 1.6kV isolation. Available in DIP24 and SMD packages, they feature low profile, five-sided EMI shielding, and international safety approvals. The converters support both single and dual output configurations with specified voltage, current, and efficiency ratings.
Specifications include operating temperature ranges, efficiency up to 78%, transient response, and compliance with EN60950, UL1950, and other standards. The datasheet also includes pin configurations, derating graphs, and environmental ratings for both DIP and SMD variants.
| Output Power | 3W max. |
|---|---|
| Input Voltage Range | 9-36VDC (24V nominal) or 18-75VDC (48V nominal) |
| Isolation Voltage | 1.6kVDC min. (DIP), 1.0kVDC min. (SMD) |
| Efficiency | Up to 78% |
| Operating Temperature Range | -25°C to +85°C (standard), -40°C to +85°C (M1 version) |
| Package Types | DIP24 and SMD |
| Dimensions (DIP) | 31.8 x 20.3 x 10.2mm |
| Weight (DIP) | 16g |
The maximum output power is 3W.
The input voltage range is 9-36VDC for 24V nominal input and 18-75VDC for 48V nominal input.
The isolation voltage is 1.6kVDC minimum for DIP and 1.0kVDC minimum for SMD.
The standard version operates from -25°C to +85°C, while the M1 version operates from -40°C to +85°C.
