Recom-International EUROLINE - DC/DC-Converter RxxC and RxxD Series, 2 Watt, DIP14/SIP7, Isolated (Dual Output) is a product with wide temperature performance, input voltage range of 5V, 12V, 24V and 48V, output voltage range of 5V, 9V, 12V, 15V, output current of 500mA, efficiency of 80%-86%, 1kVDC isolation, UL 94V-0 Package Material, internal SMD Construction, MTTF up to 2.0 Million Hours.

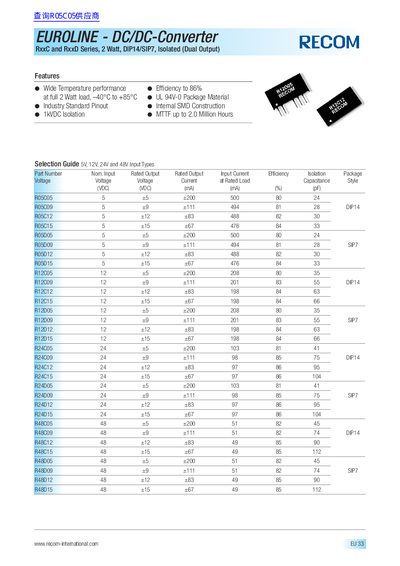

This datasheet details the specifications for Recom's RxxC and RxxD Series DC/DC converters, which are 2-watt, isolated, dual-output devices available in DIP14 and SIP7 packages. The converters support input voltages of 5V, 12V, 24V, and 48V, with output voltage options including +5V, +9V, +12V, and +15V. Key features include wide temperature performance from -40°C to +85°C, efficiency up to 86%, and 1kVDC isolation. The document includes selection guides, electrical specifications, and derating graphs for operating conditions.
| Input Voltage Range | 5V types: 4.5VDC min. / 5.5VDC max.; 12V types: 10.8VDC min. / 13.2VDC max.; 24V types: 21.6VDC min. / 26.4VDC max.; 48V types: 43.2VDC min. / 52.8VDC max. |
|---|---|
| Output Voltage Accuracy | –5% min. / 7.5% max. |
| Isolation Voltage | 1000VDC min. (flash tested for 1 second) |
| Efficiency | 70% min. at 100% load |
| Operating Temperature Range | -40°C to +85°C |
| Package Weight | SIP types: 2.76 g; DIP types: 2.85 g |
The converters support 5V, 12V, 24V, and 48V input voltages.
The isolation voltage is 1000VDC minimum (flash tested for 1 second).
The efficiency is 70% minimum at 100% load.
The operating temperature range is -40°C to +85°C.
