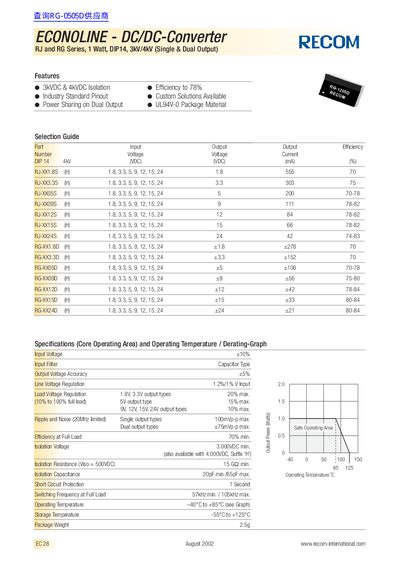

This document is about the selection guide of ECONOLINE - DC/DC-Converter RJ and RG Series, 1 Watt, DIP14, 3kV/4kV (Single & Dual Output) products. It mainly includes the input and output voltage, current, efficiency, operating temperature and derating graph of the products.
This document describes the RECOM ECONOLINE DC/DC-Converter, specifically the RJ (Single Output) and RG (Dual Output) Series. These devices are housed in a standard DIP14 package with industry-standard pinouts and offer isolation ratings of 3kV or 4kV.
| Power Output | 1 Watt |
|---|---|
| Package Type | DIP14 |
| Isolation Voltage (Standard) | 3.000VDC min. |
| Operating Temperature | -40°C to +85°C |
| Efficiency (Full Load) | 70% min. |
The minimum isolation voltage is 3,000 VDC, with a version available at 4,000 VDC.
The unit operates from -40°C to +85°C and stores from -55°C to +125°C.
The efficiency at full load is a minimum of 70%.
