SD103N25S20MBC is a high power fast recovery diode with a recovery time of 1.0 to 2.0 microseconds, high voltage ratings up to 2500V, high current capability, optimized turn on and turn off characteristics, low forward recovery, and fast and soft reverse recovery. It is suitable for snubber diode for GTO, high voltage free-wheeling diode, and fast recovery rectifier applications.

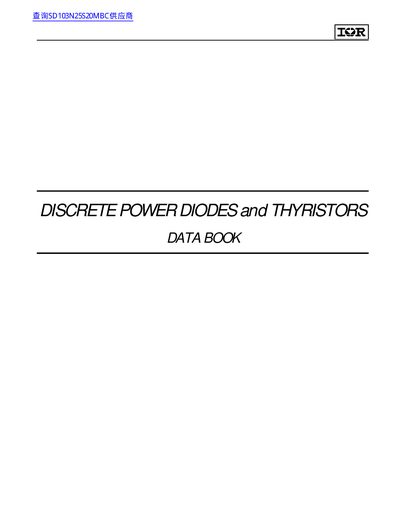

This document is a technical data book for the International Rectifier SD103N/R Series Fast Recovery Diodes. It details key features such as high power capabilities with recovery times between 1.0 to 2.0 microseconds and voltage ratings up to 2500V. The diodes are designed for applications including snubber diodes for GTOs, high voltage free-wheeling, and fast recovery rectifiers.
| Maximum junction temperature | 125°C |
|---|---|
| Recovery time range | 1.0 to 2.0 us |
| Voltage ratings range | 400 to 2500 V |
| Case style | DO-30 (DO-205AC) |
| Max. average forward current | 110 A |
Typical applications include snubber diode for GTO, high voltage free-wheeling diode, and fast recovery rectifier applications.
The maximum operating temperature range is from -40 to 125°C.
