FR301-FR307 are 3 amp fast recovery rectifiers with low cost, low leakage, low forward voltage drop, high current capability, high switching speed, and can be used in various circuits.
This document provides technical specifications for the Micro Commercial Components (MCC) FR301 through FR307 series of 3 Amp Fast Recovery Rectifiers. The devices are designed with low cost, low leakage, and high current capability features suitable for various voltage ratings from 50V to 1000V.

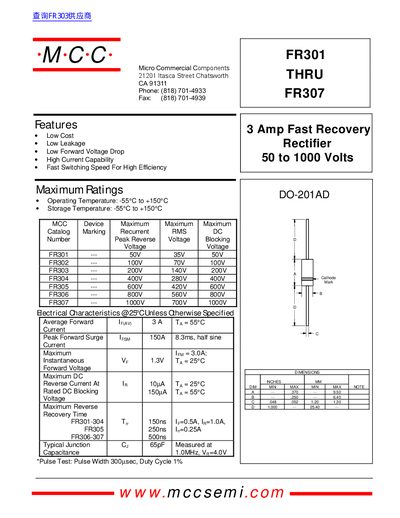

The datasheet details maximum ratings including operating temperatures ranging from -55°C to +150°C, along with electrical characteristics such as average forward current of 3A and peak forward surge current up to 150A. It also includes typical junction capacitance values and dimensional drawings for the DO-201AD package.
| Peak Forward Surge Current | 150A | 8.3ms, half sine |
|---|---|
| Maximum Instantaneous Forward Voltage (Ta = 25°C) | 1.3V |
| Operating Temperature Range | -55°C to +150°C |
| Package Type | DO-201AD |
The maximum reverse recovery time for FR306 and FR307 is 500ns.
The devices can operate between -55°C and +150°C.
The device can handle a 150A surge for 8.3ms.
