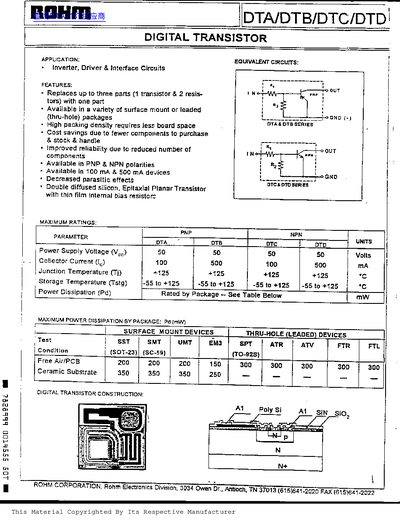

ROHM DTA/DTB/DTC/DTD Digital Transistor Datasheet

Query DTA113T suppliers

Brand: ROHM
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 706 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: F234D504CAF3FF54BA977C5075C89084
PDF: ROHM DTA/DTB/DTC/DTD Digital Transistor Datasheet PDF

About this manual

The document describes the ROHM Digital Transistor (DTA/DTB/DTC/DTD) series, which replaces up to three parts (one transistor and two resistors) with a single component. These devices are available in both surface mount and leaded through-hole packages in PNP and NPN polarities.

What's inside

Application
Features
Maximum Ratings
Digital Transistor Construction
PNP Electrical Characteristics
NPN Electrical Characteristics

Specifications

Power Supply Voltage (Vcc)	50 Volts
Collector Current (100 mA Series)	100 mA
Junction Temperature (Tj)	+125 *C
Storage Temperature (Tstg)	-55 to +125 *C
Package Types Available	Surface Mount and Thru-Hole

Frequently asked questions

What is the maximum junction temperature for these transistors?

The maximum junction temperature is +125 degrees Celsius.

Download PDF (706 KB)
