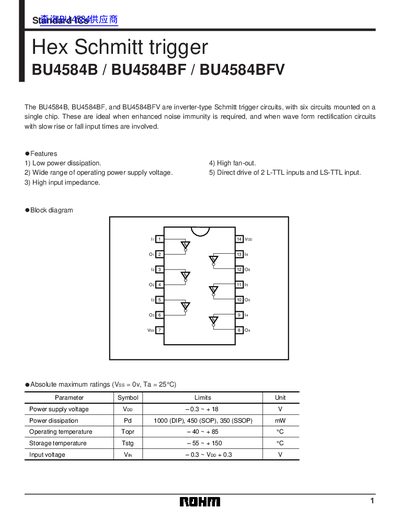

BU4584B / BU4584BF / BU4584BFV are six-circuit Schmitt trigger circuits, ideal for applications requiring enhanced noise immunity and waveform rectification circuits with slow rise or fall input times.
The document describes the BU4584B, BU4584BF, and BU4584BFV as inverter-type Schmitt trigger circuits with six circuits mounted on a single chip. These devices are designed for applications requiring enhanced noise immunity and wave form rectification with slow rise or fall input times.
| Number of circuits | Six circuits on a single chip |
|---|---|
| Power supply voltage range | -0.3 to +18 V |
| Operating temperature range | -40 to +85 °C |
| Storage temperature range | -55 to +150 °C |
| Input high level voltage (ViH) | 7.0 V min, 10 V typ, 15 V max |
The absolute maximum rating for the power supply voltage is +18 V.
The maximum power dissipation for the DIP package is 1000 mW.
