UDZS8.2B Diodes is a ROHM Zener diode with a 2-pin mini-mold type (UMD2) structure for high-density mounting. UDZS8.2B Diodes is highly reliable and can be automatically assembled.

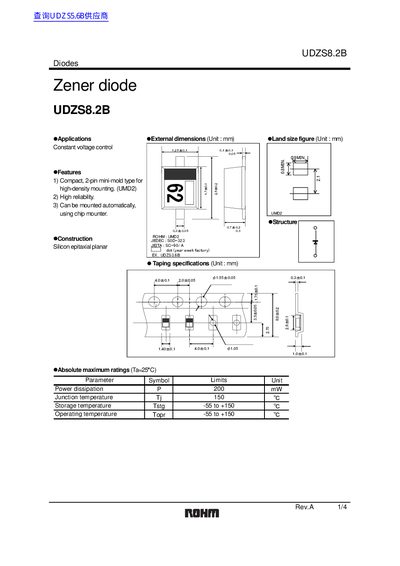

This document is a technical datasheet for the ROHM UDZS8.2B Zener diode. It describes the device as a compact, 2-pin mini-mold type suitable for high-density mounting and automatic chip mounter usage. The component features high reliability and utilizes a silicon epitaxial planar structure.
| Power dissipation | 200 mW |
|---|---|
| Junction temperature | 150 °C |
| Storage temperature | -55 to +150 °C |
| Operating temperature | -55 to +150 °C |
The absolute maximum power dissipation rating is 200 mW.
The device operates from -55 to +150 °C and stores from -55 to +150 °C.
The typical Zener voltage (Vz) is 8.02 V.
