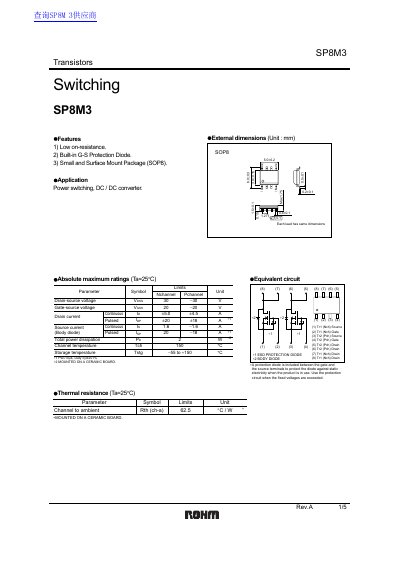

SP8M3 is a switch with low on-resistance and built-in G-S protection diode, suitable for power switching and DC/DC converters.
The document describes the SP8M3 Transistors, which are available in both N-channel and P-channel configurations. Key features include low on-resistance, a built-in gate-source (G-S) protection diode to prevent static electricity damage, and a small surface-mount SOP8 package.
These devices are designed for power switching and DC/DC converter applications. The datasheet provides absolute maximum ratings, electrical characteristics for both channel types, equivalent circuit diagrams, thermal resistance data, and various characteristic curves including capacitance, switching times, and on-state resistance versus current.
| Gate-source voltage | 20 V |
|---|---|
| Drain current (N-channel) | ±5.0 A |
| Total power dissipation | 20 W |
| Package type | SOP8 |
The device is intended for use in power switching and DC/DC converter circuits.
You must use a protection circuit when the fixed voltages are exceeded to protect against static electricity.
