The BA178!!T and BA178!!FP series are 3-pin fixed positive output voltage regulators. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. There are 11 fixed output voltages available, including 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, and 24V. The maximum current capacity is 1A for each voltage.

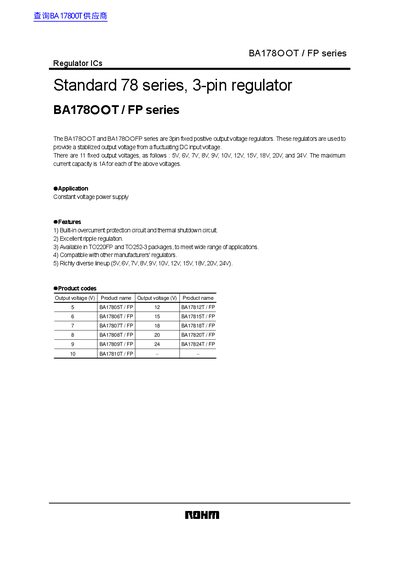

The ROHM BA178OOT/FP series consists of 3-pin fixed positive output voltage regulators designed to provide a stabilized output from fluctuating DC input voltages. The series offers eleven standard fixed output voltages ranging from 5V to 24V, with a maximum current capacity of 1A per voltage level.
| Output voltages | 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, and 24V |
|---|---|
| Maximum current capacity | 1A |
| Operating temperature range | -40 to +85 °C |
| Storage temperature range | -55 to +150 °C |
| Packages available | TO220FP and TO252-3 |
Yes, the series is designed to be compatible with other manufacturers' regulators.
The maximum current capacity is 1A for each of the available fixed output voltages.
These regulators are available in TO220FP and TO252-3 packages to meet wide range of applications.
The regulator includes a built-in overcurrent protection circuit and thermal shutdown circuit.
