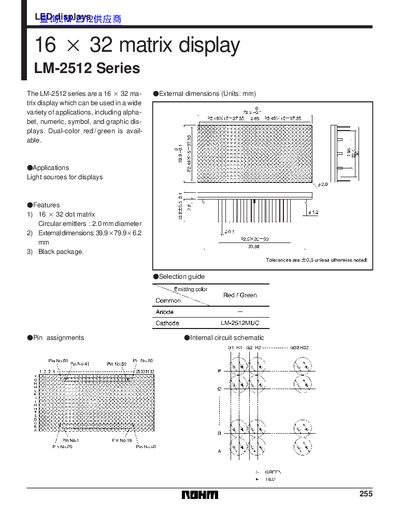

The document introduces the features and characteristics of the LM-2512 series LED displays, including 16×32 dot matrix, dual-color red/green, and external dimensions of 39.9×79.9×6.2mm.
The document describes the LM-2512 Series, a 16 x 32 dot matrix LED display available in dual-color red/green. It features circular emitters with a 2.0 mm diameter and is designed for applications including alpha-numeric, symbol, and graphic displays.
The datasheet provides detailed technical information including pin assignments for the MUC model, absolute maximum ratings such as power dissipation of 2.69 W, and electrical characteristics like forward voltage and peak wavelength.
| Matrix Size | 16 x 32 dot matrix |
|---|---|
| Emitter Type | Circular emitters : 2.0 mm diameter |
| External Dimensions | 39.9 x 79.9x6.2 mm |
| Package Color | Black package |
| Forward Current | 15 mA |
| Peak Forward Current | 60 mA |
| Operating Temperature | -20~+50 Cc |
The specific model listed for the Anode/Cathode configuration is LM-2512MUC.
The maximum power dissipation (Po) is 2.69 W for both Red and Green.
The typical forward voltage (Vf) is 2.8 V for Red and 2.1 V for Green.
