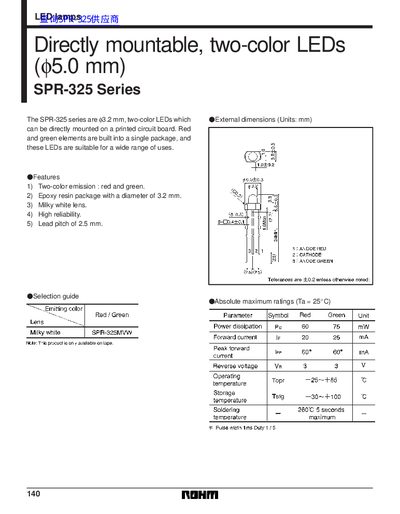

The SPR-325 series are φ3.2 mm, two-color LEDs which can be directly mounted on a printed circuit board. Red and green elements are built into a single package, and these LEDs are suitable for a wide range of uses.
The SPR-325 series consists of two-color LEDs featuring red and green elements built into a single package. These devices are designed for direct mounting on printed circuit boards and feature an epoxy resin package with a diameter of 3.2 mm and a milky white lens.
Key specifications include a lead pitch of 2.5 mm, a power dissipation rating up to 75 mW (green), and operating temperatures ranging from -25°C to +85°C. The datasheet provides detailed electrical and optical characteristics for both red and green emission modes.
| Package Diameter | 3.2 mm |
|---|---|
| Lead Pitch | 2.5 mm |
The epoxy resin package has a diameter of 3.2 mm.
