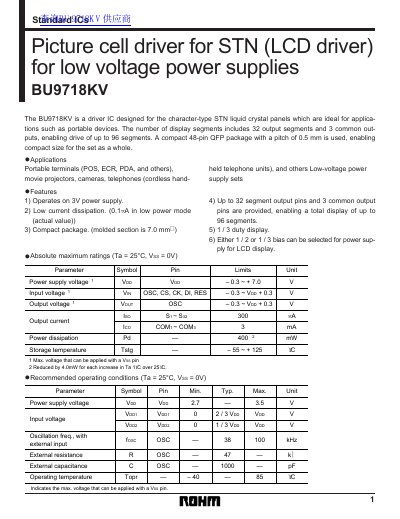

The BU9718KV is a driver IC designed for character-type STN liquid crystal panels, ideal for portable devices. It supports up to 96 segments display with 32 output segments and 3 common outputs. It operates on a 3V power supply with low current dissipation and comes in a compact 48-pin QFP package.
The BU9718KV is an integrated circuit specifically designed to drive character-type STN (Super Twisted Nematic) liquid crystal panels. It features 32 segment output pins and 3 common output pins, allowing it to control displays with up to 96 segments. The chip operates on a low voltage power supply ranging from 2.7V to 3.5V.
| Power supply voltage | 2.7V to 3.5V |
|---|---|
| Number of segment outputs | Up to 96 segments (32 output, 3 common) |
| Package type | 48-pin QFP |
| Operating temperature range | -40°C to +85°C |
| Low power mode current | 0.1 mA (typical) |
The BU9718KV enables a total display of up to 96 segments using its 32 output pins and 3 common outputs.
The device operates on a power supply voltage between 2.7V and 3.5V.
The chip supports either a 1/2 or 1/3 bias mode for the LCD display power supply.
