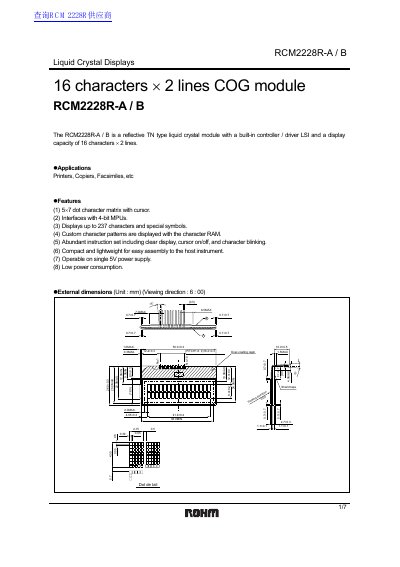

RCM2228R-A / B is a reflective TN type liquid crystal module with a built-in controller / driver LSI and a display capacity of 16 characters x 2 lines. Applications include printers, copiers, and facsimiles. The module features a 5 x 7 dot character matrix with cursor, interface with 4-bit MPUs, display of up to 237 characters and special symbols, display of custom character patterns with the character RAM, abundant instruction set including clear display, cursor on/off, and character blinking, compact and lightweight for easy assembly to the host instrument, operation on single 5V power supply, and low power consumption.
The document describes the RCM2228R-A / B, a reflective TN type liquid crystal module with a built-in controller and driver LSI. It has a display capacity of 16 characters by 2 lines and is designed for applications such as printers, copiers, and facsimiles.
| Display Capacity | 16 characters x 2 lines |
|---|---|
| Module Type | Reflective TN type |
| Power Supply Voltage | Single 5V |
| Character Matrix | 5x7 dot matrix with cursor |
| Interface | 4-bit MPU interface |
