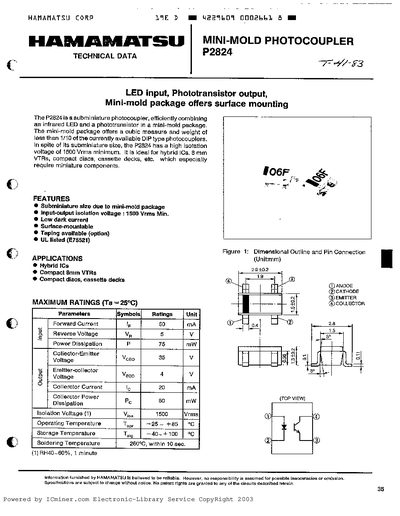

The Hamamatsu P2824 is a subminiature photocoupler that efficiently combines an infrared LED and a phototransistor in a mini-mold package. This compact component offers a cubic measure and weight of less than 1/10 of standard DIP type photocouplers while maintaining a high isolation voltage of at least 1500 Vrms minimum.
| Forward Current (Ir) | 50 mA |
|---|---|
| Power Dissipation (P) | 75 mW |
| Collector-Emitter Voltage (Vceo) | 35 V |
| Isolation Voltage (Viso) | 1500 Vrms Min. |
| Operating Temperature | -25 ~ +85 °C |
It is ideal for hybrid ICs, 8 mm VTRs, compact discs, and cassette decks.
Yes, the mini-mold package offers a surface-mountable design.
