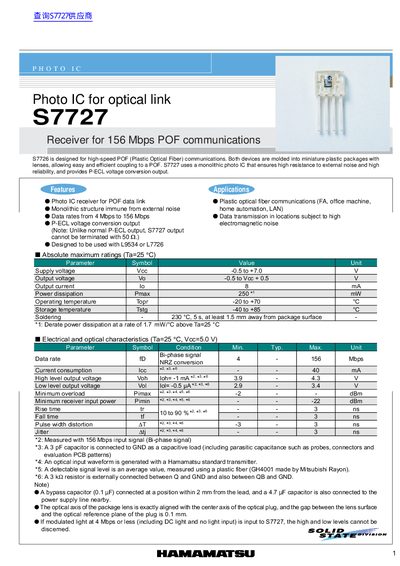

S7726 and S7727 are designed for high-speed POF (Plastic Optical Fiber) communications. Both devices are molded into miniature plastic packages with lenses, allowing easy and efficient coupling to a POF. S7727 uses a monolithic photo IC that ensures high resistance to external noise and high reliability, and provides P-ECL voltage conversion output.
The Hamamatsu S7727 is a monolithic photo IC receiver designed for high-speed Plastic Optical Fiber (POF) communications. It supports data rates from 4 Mbps to 156 Mbps and features a P-ECL voltage conversion output. The device is molded into a miniature plastic package with lenses for efficient coupling to POF cables.
| Data rate | 4 - 156 Mbps |
|---|---|
| Supply voltage | -0.5 to +7.0 V |
| Operating temperature | -20 to +70 °C |
| Current consumption | 40 mA |
| Rise time | 3 ns |
The device supports data rates from 4 Mbps to 156 Mbps.
Yes, it is designed to be used with L9534 or L7726.
No, the S7727 output cannot be terminated with 50 Ω.
