The document describes a xenon flash lamp with high stability and high input energy, featuring long life and short arc length. It is suitable for applications such as high-speed imaging and pollution analysis.

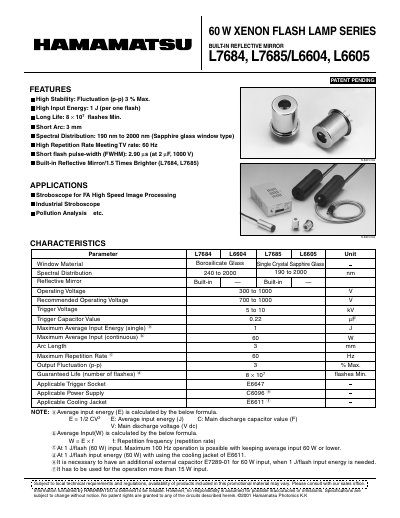

This document provides technical specifications and characteristics for the Hamamatsu Photonics 60 W Xenon Flash Lamp series, including models L7684, L7685, L6604, and L6605. Key features include a built-in reflective mirror for increased brightness, a short arc length of 3 mm, and a spectral distribution ranging from 190 nm to 2000 nm for the sapphire glass window type. The lamps are designed for high stability with a fluctuation of 3% maximum and a guaranteed life of at least 8 x 10^7 flashes.
| Spectral Distribution | 190 nm to 2000 nm (Sapphire glass window type) |
|---|---|
| High Input Energy | 1 J (per one flash) |
| Guaranteed Life | 8 x 10^7 flashes Min. |
| Arc Length | 3 mm |
| Operating Voltage | 300 to 1000 V |
| Maximum Repetition Rate | 60 Hz |
| Output Fluctuation | 3 % Max. |
The guaranteed life is a minimum of 8 x 10^7 flashes.
The cooling jacket E6611 is recommended to maintain stable operation and even temperature.
The applicable trigger socket is E6647.
