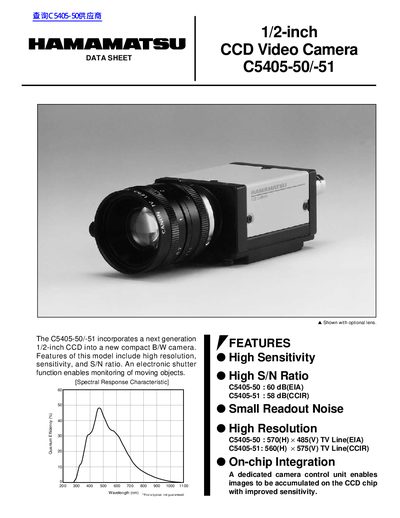

The document introduces a new compact B/W camera C5405-50/-51, which incorporates a next generation 1/2-inch CCD. It features high resolution, sensitivity, and S/N ratio. The camera has an electronic shutter function for monitoring moving objects. It also has high sensitivity, high S/N ratio, small readout noise, and high resolution.
The document describes the C5405-50/-51, a next-generation 1/2-inch CCD video camera designed for high resolution, sensitivity, and signal-to-noise ratio. It features an on-chip integration with a dedicated control unit to accumulate images directly on the CCD chip.
| Pickup device | 1/2" Interline transfer CCD |
|---|---|
| Number of pixels (H) x (V) | 768 x 494 / 752 x 582 |
| Effective number of pixels | 756 x 485 / 739 x 575 |
| Resolution (H) x (V) TV lines | 570 x 485 / 560 x 575 |
| Lens mount | C-mount (17.526 mm) |
| Power requirements | DC 12 V(12P) |
| Power consumption | 2.0W |
The minimum sensitivity is 0.3 lux at F1.4 with AGC ON and gamma OFF.
Yes, it features a flickerless electronic shutter ranging from 1/125 to 1/10,000 seconds.
