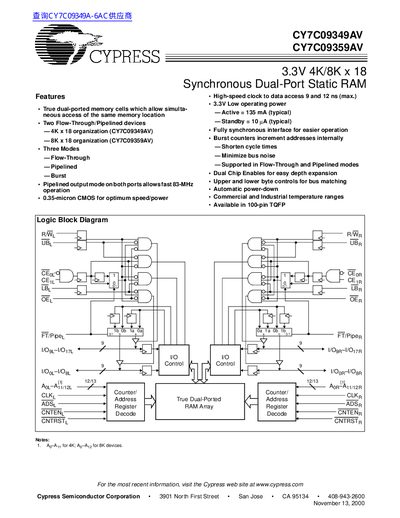

This document introduces the features and characteristics of CY7C09349AV and CY7C09359AV two 3.3V 4K/8K x 18 Synchronous Dual-Port Static RAMs
This document provides a technical overview of the Cypress CY7C09349AV and CY7C09359AV synchronous dual-port static RAMs. These devices are high-speed 3.3V CMOS chips available in 4K x 18 and 8K x 18 organizations, respectively. They feature true dual-ported memory cells allowing simultaneous access to the same location via two independent ports.
| Organization (CY7C09349AV) | 4K x 18 |
|---|---|
| Organization (CY7C09359AV) | 8K x 18 |
| Operating Voltage | 3.3V |
| Max Access Time (Pipelined) | 9 ns / 12 ns |
| Typical Operating Current | 135 mA (4K) / 115 mA (8K) |
| Typical Standby Current | 10 µA |
| Package Type | 100-pin TQFP |
The devices support Flow-Through, Pipelined, and Burst modes.
Output mode is selected via the FT/PIPE pin; assert LOW for flow-through and HIGH for pipelined.
The maximum operating frequency is 67 MHz for flow-through and 50 MHz for pipelined modes.
