BAS16W, BAS19W, BAS20W, BAS21W are high-conductance surface mount switching diodes from COMCHIP. They operate at a voltage range of 75-200 volts and have a power rating of 200 milliwatts. They are fast switching and are well-suited for automatic insertion.

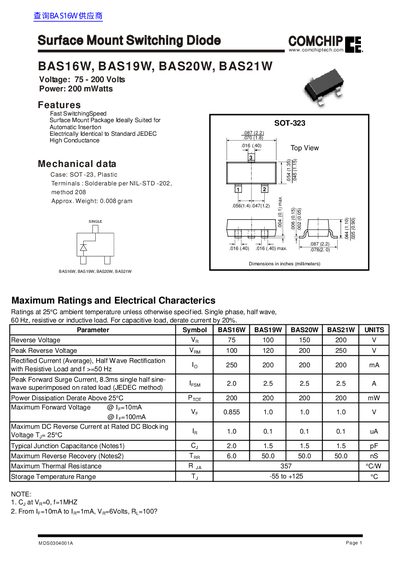

This document is a technical datasheet from COMCHIP detailing the specifications for four models of Surface Mount Switching Diodes: BAS16W, BAS19W, BAS20W, and BAS21W. The devices are designed in an SOT-23 plastic package and are electrically identical to standard JEDEC equivalents.
| Package Type | SOT-23, Plastic |
|---|---|
| Power Dissipation | 200 mWatts |
| Maximum Forward Surge Current | 26 A |
| Storage Temperature Range | -55 to +125 °C |
The maximum power dissipation is rated at 200 mWatts.
The BAS16W model has a reverse voltage rating of 75 Volts.
