AM100/150 Thru AM1010/1510 is a single-phase bridge rectifier from COMCHIP. It has a rated voltage of 50-1000V and a rated current of 1.0-1.5A. It has reliable construction, low cost, and small and light features.

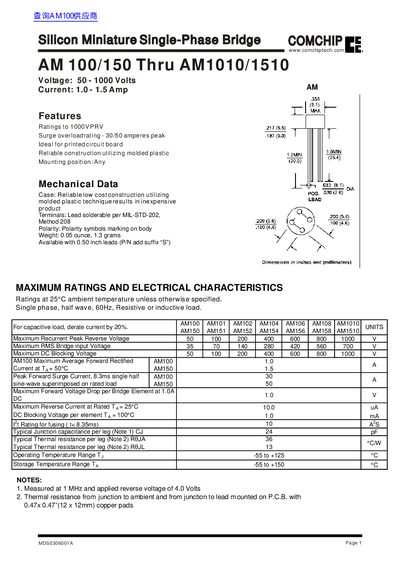

This document provides technical specifications for the COMCHIP Silicon Miniature Single-Phase Bridge series, including models AM 100/150 through AM1010/1510. The devices are rated up to 1000VPRV and feature a surge overload rating of 30/50 amperes peak.
| Voltage Rating | 50- 1000 Volts |
|---|---|
| Current Rating | 1.0- 1.5Amp |
| Surge Overload Rating | 30/50 amperes peak |
| Operating Temperature Range | -55 to +125 °C |
| Storage Temperature Range | -55 to +150 °C |
The devices have a surge overload rating of 30/50 amperes peak.
The maximum forward voltage drop per bridge element at 1.0A is 1.0 Vv.
