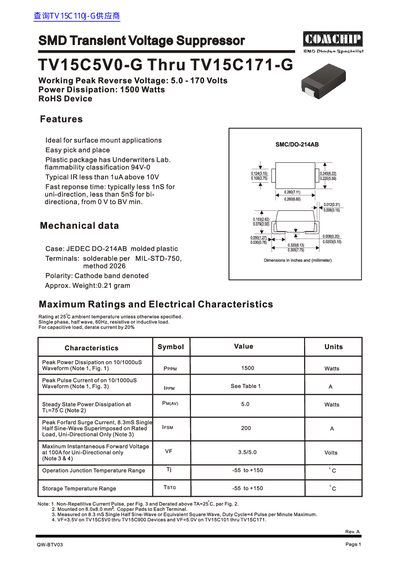

The document provides technical information for COMCHIP's SMG Diodes Specialist SMD Transient Voltage Suppressor line. These devices are designed for surface mount applications in packages such as SMC/DO-214AB and feature a plastic package with Underwriters Lab flammability classification 94V-0.
Key specifications include a peak power dissipation of 1500 Watts on a 10/1000µs waveform, steady-state power dissipation of 5.0 Watts at 25°C ambient temperature, and typical response times of less than 1 nanosecond for uni-directional devices. The series covers working peak reverse voltages from 5.0 to 170 Volts.
| Peak Power Dissipation (10/1000µs) | 1500 Watts |
|---|---|
| Steady State Power Dissipation | 5.0 Watts |
| Peak Forward Surge Current (8.3ms) | 200 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Storage Temperature Range | -55 to +150 °C |
| Package Type | JEDEC DO-214AB molded plastic |
The typical response time is less than 1 nanosecond.
The plastic package has Underwriters Lab flammability classification 94V-0.
Suffix K denotes devices with a 10% tolerance.
