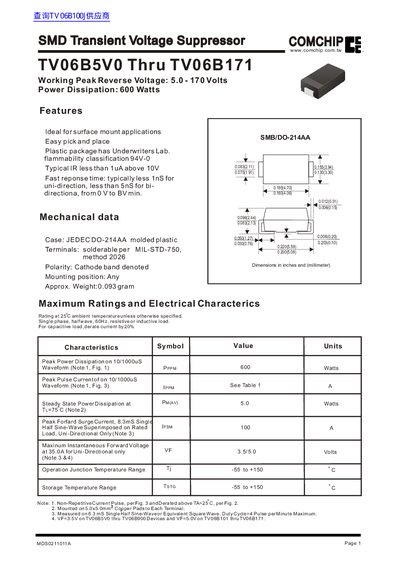

TV06B5V0 Thru TV06B171 is the SMD Transient Voltage Suppressor of COMCHIP company. Its maximum working voltage is 5.0-170V and maximum power dissipation is 600W. It has the characteristics of fast response time (typical value is less than 1ns and 5ns), easy surface mount and so on.
The document provides technical information for a series of Surface Mount Device (SMD) Transient Voltage Suppressors manufactured by COMCHIP. These components are designed for surface mount applications and feature an Underwriters Lab flammability classification of 94V-0. Key features include fast response times, typically less than 1 nanosecond for uni-directional devices and less than 5 nanoseconds for bi-directional devices.
| Power Dissipation | 600 Watts |
|---|---|
| Typical IR | less than 1uA above 10V |
| Response Time (Uni-directional) | typically less 1nS |
| Response Time (Bi-directional) | less than 5nS |
| Case Type | JEDEC DO-214AA molded plastic |
The plastic package has an Underwriters Lab flammability classification of 94V-0.
The mounting position can be any orientation.
