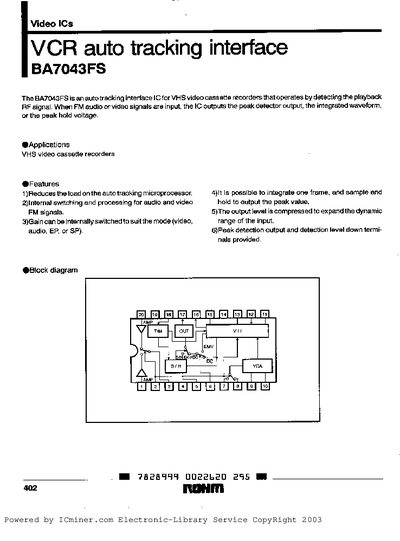

ROHM BA7043FS Video IC Datasheet

Brand: ROHM
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 177 KB
Published: 06 June, 2012
Updated: 01 October, 2023
MD5 checksum: AA6C96C85C231309C6EF344001BA4F58
PDF: ROHM BA7043FS Video IC Datasheet PDF

About this manual

The ROHM BA7043FS is an integrated circuit designed as an auto tracking interface for VHS video cassette recorders. It operates by detecting playback RF signals and outputs peak detector results, integrated waveforms, or peak hold voltages when FM audio or video signals are input. The device features internal switching and processing to reduce the load on external microprocessors.

What's inside

Applications
Features
Internal circuits
Absolute maximum ratings
Electrical characteristics
Circuit operation
Pin description

Specifications

Power supply voltage (Vcc)	4.5 - 5.7 V
Operating temperature range	-20 to +75 °C
Storage temperature range	-55 to +125 °C
Power dissipation (Pd)	750 mW
Maximum power supply voltage	8.0 V

Frequently asked questions

What is the primary application of the BA7043FS?

It is an auto tracking interface IC for VHS video cassette recorders.

How does the BA7043FS reduce microprocessor load?

By performing internal switching and processing for audio and video signals to output peak values.
