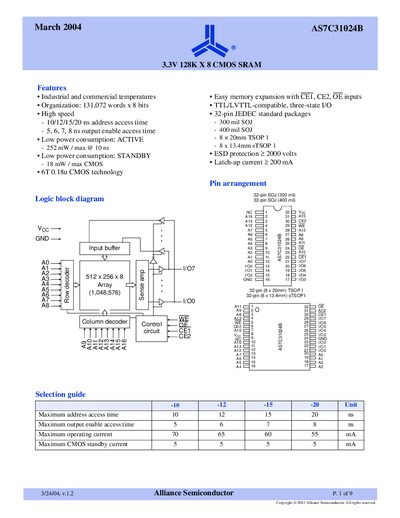

AS7C31024B 3.3V 128K X 8 CMOS SRAM is a SRAM storage device produced by Alliance Semiconductor. It has industrial and commercial temperature range, 131,072 words x 8 bits organization, 10/12/15/20 ns address access time, 5, 6, 7, 8 ns output enable access time, 252 mW / max @ 10 ns ACTIVE power consumption, 18 mW / max STANDBY power consumption, 6T 0.18u CMOS process, TTL/LVTTL-compatible, three-state I/O, 32-pin JEDEC standard package and other features
The AS7C1024B is a high-speed Static Random Access Memory (SRAM) device organized as 131,072 words x 8 bits. It utilizes 6T 0.18µ CMOS technology to achieve low power consumption and high speed with address access times ranging from 10 to 20 ns.
| Organization | 131,072 words x 8 bits |
|---|---|
| Technology | 6T 0.18µ CMOS |
| Supply Voltage (Nominal) | 3.3 V |
| Operating Temperature (Commercial) | 0 to +70 °C |
| Max Operating Current (10 ns variant) | 70 mA |
The device offers maximum address access times of 10, 12, 15, or 20 ns depending on the specific part number.
The AS7C1024B is offered in 32-pin SOJ (300 mil and 400 mil), TSOP I (8x20mm), and sTSOP I (8x13.4mm) packages.
