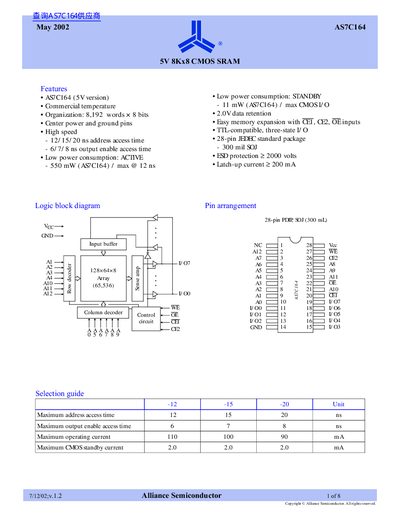

The AS7C164 is a high-performance CMOS 65,536-bit Static Random Access Memory (SRAM) device organized as 8,192 words x 8 bits array. The device offers high performance and low power consumption, and features 2.0V data retention, making it ideal for high-performance and low-power applications. It also features easy-to-expand memory through CE1, CE2, and OE inputs.
The AS7C164 is a high-performance Static Random Access Memory (SRAM) organized as 8,192 words by 8 bits. It features commercial temperature operation and is designed for applications requiring fast data access and low power consumption.
The device offers multiple speed grades with address access times of 12/15/20 ns and output enable access times of 6/7/8 ns. It includes center power and ground pins, TIL-compatible three-state I/O, and a 28-pin JEDEC standard package available in SOJ or PDIP formats.
| Organization | 8,192 words x 8 bits |
|---|---|
| Supply Voltage | 5V |
| Operating Temperature (Commercial) | 0 to +70 °C |
| Package Type | 28-pin PDIP or SOJ (300 mil) |
| Max Address Access Time | 12/15/20 ns |
The device offers 2.0V data retention.
Yes, it is TIL-compatible with three-state I/O.
