ASM5P2304B is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks in PC, workstation, datacom, telecom and other high-performance applications.

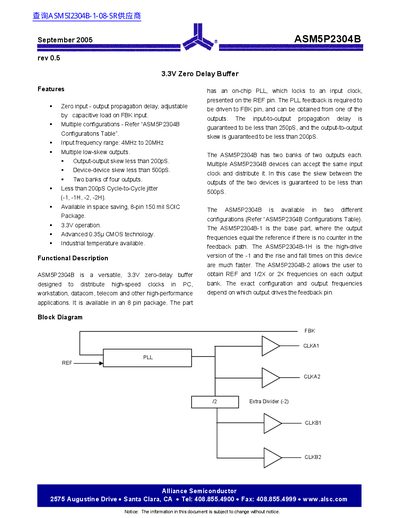

The ASM5P2304B is a versatile, 3.3V zero-delay buffer designed to distribute clocks in PC, workstation, datacom, telecom, and other high-performance applications. It features an on-chip PLL that locks to an input clock presented on the REF pin, with feedback driven to the FBK pin. The device guarantees an input-to-output propagation delay of less than 250pS and output-to-output skew of less than 200pS.
| Supply Voltage | 3.0V to 3.6V |
|---|---|
| Operating Temperature (Commercial) | 0°C to 70°C |
| Input Frequency Range | 4MHz to 20MHz |
| Output-to-Output Skew | < 200pS |
| Package Type | 8-pin SOIC |
The device supports an input frequency range from 4MHz to 20MHz.
The ASM5P2304B has two banks of four outputs each.
