AS7C1026/AS7C31026 are 5V/3.3V 64K×16 CMOS SRAM with 65,536 words x 16 bits storage capacity. CE, OE inputs are supported for memory expansion. High clock frequency and low power consumption are its main features.

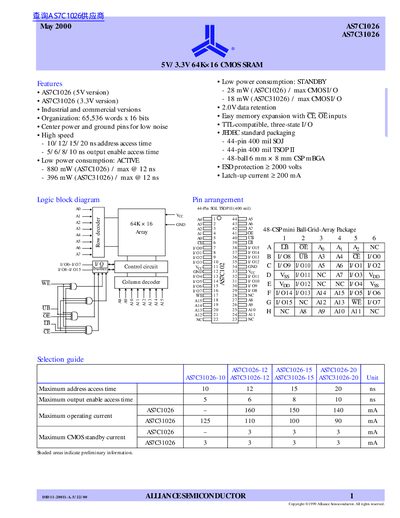

This document provides technical specifications for the AS7C1026 and AS7C31026, which are high-performance CMOS Static Random Access Memory (SRAM) devices organized as 65,536 words x 16 bits. The series includes both industrial and commercial versions available in 44-pin SOJ/TSOP II packages or 48-ball CSP mBGA packages.
| Organization | 65,536 words x 16 bits |
|---|---|
| Address access time (AS7C1026) | 10/12/15/20 ns |
| Output enable access time (AS7C31026) | 5/6/8/10 ns |
| Active power consumption (AS7C31026) | 396 mW max @ 12 ns |
| Standby power consumption (AS7C1026) | 28 mW max |
| Data retention voltage | 2.0V |
The devices are available in 44-pin SOJ, 44-pin TSOP II, and 48-ball CSP mBGA packages.
The devices are organized as 65,536 words x 16 bits.
The maximum address access time is 12 ns.
The maximum power consumption is 18 mW.
