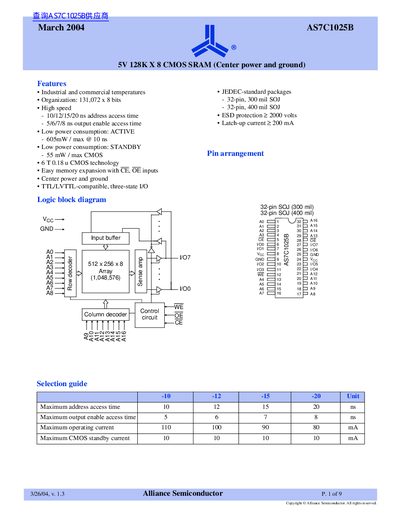

AS7C1025B 5V 128K X 8 CMOS SRAM (Center power and ground) is a CMOS SRAM produced by Alliance Semiconductor. It is designed for industrial and commercial temperatures, has an organization of 131,072 x 8 bits, high speed, and low power consumption.
The AS7C1025B is a high-performance CMOS Static Random Access Memory (SRAM) device organized as 131,072 x 8 bits. It is designed for applications requiring fast data access and low power consumption, featuring address access times of 10/12/15/20 ns and output enable access times of 5/6/7/8 ns.
| Organization | 131,072 x 8 bits |
|---|---|
| Technology | 6T 0.18 um CMOS |
| Supply Voltage | 5 V |
| Operating Temperature (Commercial) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Max Standby Current | 55 mW |
The device offers maximum address access times of 10, 12, 15, and 20 ns.
Yes, all chip inputs and outputs are TTL-compatible.
