The document describes a 2.0 Amp silicon rectifier with extremely low thermal resistance, suitable for surface mount applications. It has a higher temperature soldering capability of 250 degrees Celsius for 10 seconds at terminals. The product is available in various models with maximum operating temperatures ranging from -55 degrees Celsius to +150 degrees Celsius.

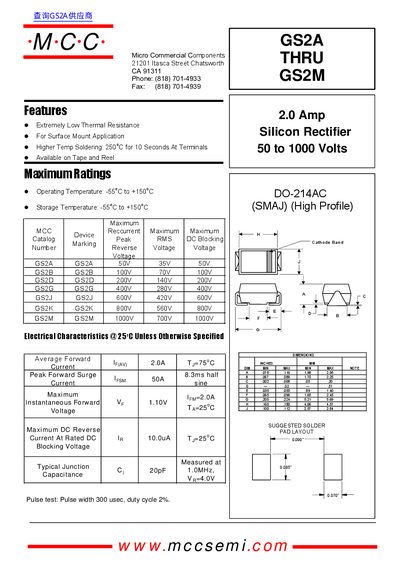

This document is a technical datasheet for the Micro Commercial Components (MCC) series of silicon rectifiers, ranging from model GS2A to GS2M. These components are designed for surface mount applications with extremely low thermal resistance.
The datasheet provides detailed electrical specifications including average forward current ratings of 2.0 Amps and peak forward surge currents up to 50A. It also lists specific reverse voltage ratings for each model, operating temperature ranges from -55°C to +150°C, and includes suggested soldering parameters.
| Peak Forward Surge Current | 50A |
|---|---|
| Operating Temperature Range | -55°C to +150°C |
The components can withstand higher temperatures of 250°C for 10 seconds at the terminals.
The GS2M model has a maximum DC blocking voltage of 1000V.
