The product is a power line filter that is used to suppress switching power supply noise. It meets the requirements of CISPR in Europe and FCC specifications in the USA. It has high insertion loss and low leakage current.

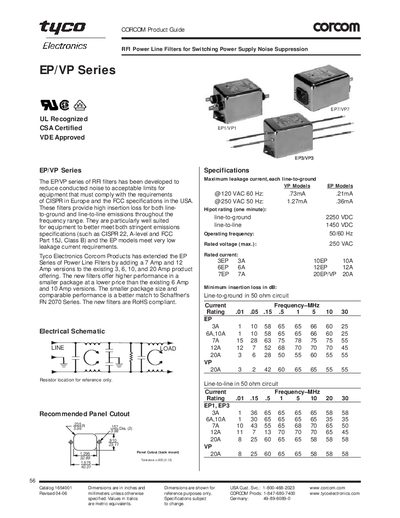

The EP/VP series of RFI filters is developed to reduce conducted noise to acceptable limits for equipment complying with CISPR and FCC specifications. These filters provide high insertion loss for both line-to-ground and line-to-line emissions throughout the frequency range, making them suitable for meeting stringent emissions requirements like CISPR 22 A-level and FCC Part 15J Class B.
| Maximum leakage current (line-to-ground) @ 120 VAC 60 Hz | 73mA for VP Models, -21mA for EP Models |
|---|---|
| Maximum leakage current (line-to-ground) @ 250 VAC 50 Hz | 1.27mA for VP Models, .36mA for EP Models |
| Hipot rating (line-to-ground) | 2250 VDC |
| Hipot rating (line-to-line) | 1450 VDC |
| Operating frequency | 50/60 Hz |
| Rated voltage (max.) | 250 VAC |
These filters are designed to reduce conducted noise to acceptable limits for equipment that must comply with CISPR requirements in Europe and FCC specifications in the USA.
The maximum rated voltage for the EP/VP Series filters is 250 VAC.
The filters operate at a frequency of 50/60 Hz.
