CORCOM power line filters are designed to suppress switching power supply emissions down to 10 kHz.

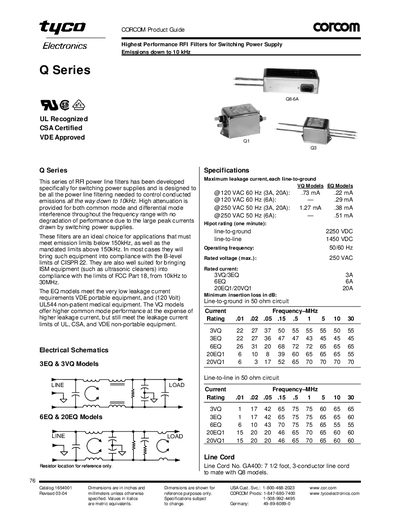

This document provides a product guide for the Tyco Electronics CORCOM Q Series of RFI (Radio Frequency Interference) power line filters. These high-performance filters are specifically developed for switching power supply applications to control conducted emissions down to 10 kHz. The series includes EQ models with low leakage current and VQ models offering higher common mode performance, designed to meet various international emission limits such as CISPR 22 B-level and FCC Part 18.
| Maximum leakage current (VQ, 3A/20A @ 120 VAC) | 73 mA |
|---|---|
| Rated voltage (max.) | 250 VAC |
| Operating frequency | 50/60 Hz |
They are developed specifically for switching power supplies to control conducted emissions down to 10 kHz.
The Q Series is designed to control conducted emissions down to 10 kHz.
The maximum rated voltage is 250 VAC.
