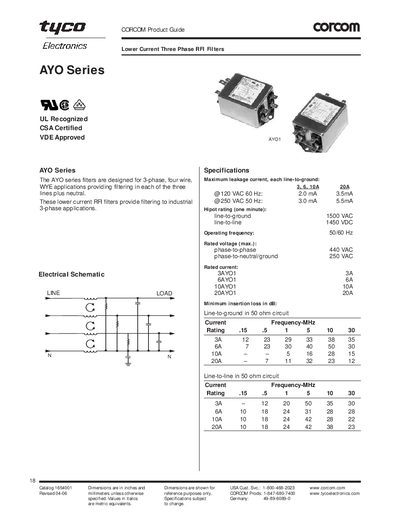

The document provides specifications and characteristics of lower current three-phase RFI filters in the CORCOM product series, including maximum leakage current, hipot rating, operating frequency, rated voltage, and current.
The document describes the AYO series of lower current three-phase Radio Frequency Interference (RFI) filters designed by Tyco Electronics. These filters are intended for WYE applications in industrial 3-phase systems, providing filtering across the three lines plus neutral.
Key specifications include a maximum leakage current of up to 5.5mA at 250VAC/50Hz and an operating frequency range of 50/60 Hz. The filters are UL Recognized, CSA Certified, and VDE Approved.
| Rated voltage (max.) phase-to-phase | 440 VAC |
|---|---|
| Rated voltage (max.) phase-to-neutral/ground | 250 VAC |
| Operating frequency | 50/60 Hz |
| Hipot rating (one minute) line-to-ground | 1500 VAC |
They are designed for WYE applications providing filtering in each of the three lines plus neutral.
The filters operate at a rated frequency of 50/60 Hz.
The maximum rated voltage is 440 VAC for phase-to-phase connections and 250 VAC for phase-to-ground.
