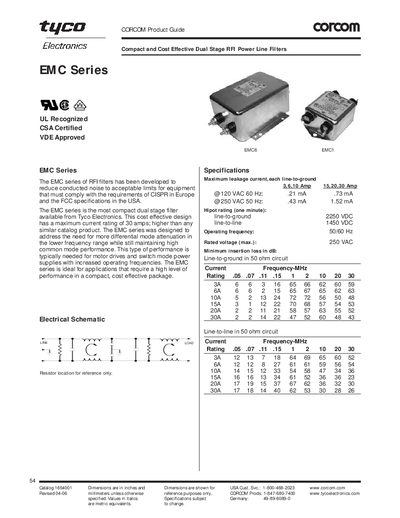

CORCOM Product Guide is about Compact and Cost Effective Dual Stage RFI Power Line Filters. This series of RFI filters has been developed to reduce conducted noise to acceptable limits for equipment that must comply with the requirements of CISPR in Europe and the FCC specifications in the USA. The EMC series is the most compact dual stage filter available from Tyco Electronics. This cost effective design has a maximum current rating of 30 amps; higher than any similar catalog product. The EMC series was designed to address the need for more differential mode attenuation in the lower frequency range while still maintaining high common mode performance. This type of performance is typically needed for motor drives and switch mode power supplies with increased operating frequencies. The EMC series is ideal for applications that require a high level of performance in a compact, cost effective package.
The EMC series of RFI filters is designed to reduce conducted noise to meet CISPR European and FCC USA requirements. It features a compact, cost-effective dual-stage design with a maximum current rating of 30 amps, offering high differential mode attenuation in the lower frequency range alongside strong common mode performance.
| Maximum current rating | 30 amps |
|---|---|
| Operating frequency | 50/60 Hz |
| Rated voltage (max) | 250 VAC |
| Hipot rating line-to-ground | 2250 VDC |
The EMC series has a maximum current rating of 30 amps.
The hipot rating is 2250 VDC for line-to-ground and 1450 VDC for line-to-line.
