The HT series power line filters provide superior common- mode and premium differential-mode attenuation to RFI noise on the frequency range from 10kHz to 30MHz, for IEC 60601 and UL2601 patient-connected equipment, as well as all other electronic equipment that cannot tolerate leakage current. They are a size- and cost-effective solution to the problem of meeting both medical leakage current limits and conducted emissions limits in equipment with high noise sources (such as switching power supplies).
The HT series power line filters provide superior common-mode and premium differential-mode attenuation to RFI noise on the frequency range from 10kHz to 30MHz. They are a size- and cost-effective solution for meeting both medical leakage current limits (IEC 60601) and conducted emissions limits in equipment with high noise sources.

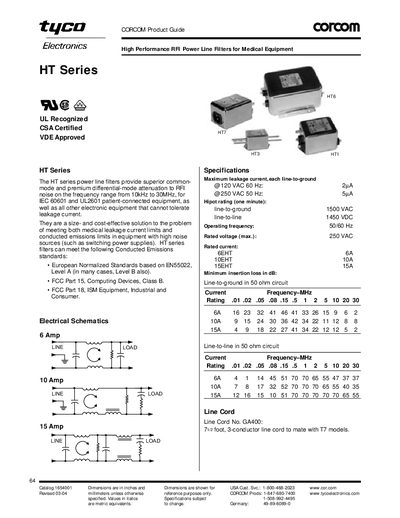

The guide details various case styles including HT1, HT7 & HT7M, and HT3, listing specific part numbers such as 6EHT1, 10EHT1, and 15EHT1. It includes electrical schematics showing load connections and provides detailed dimensional drawings for panel mounting and wire leads.
| Frequency Range | 10kHz to 30MHz |
|---|---|
| Maximum Leakage Current (6A model) | 2.5 mA @ 120 VAC 60 Hz |
| Rated Voltage (max) | 250 VAC |
| Hipot rating line-to-ground | 1500 VAC |
The HT series provides attenuation for RFI noise on the frequency range from 10kHz to 30MHz.
The maximum leakage current for each line-to-ground is 5A at 250 VAC 50 Hz.
The hipot rating is 1500 VAC for line-to-ground and 1450 VDC for line-to-line.
