The MT2 relay is a dry circuit, test access, ringing 2 pole telecom/signal relay from Tyco Electronics AXICOM. It is through hole type (THT), non-polarized, non-latching and has 1 coil.

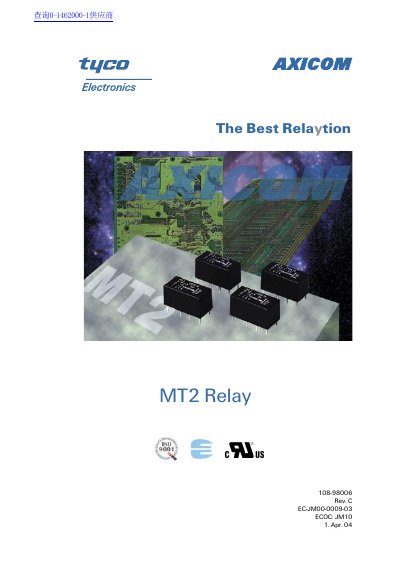

This document is a datasheet for the Tyco Electronics MT2 Relay, part number 108-98006. It describes a 2-pole, non-polarized, non-latching relay with a single coil and two changeover contacts (DPDT). The device is designed for through-hole (THT) mounting on a PCB with a 2.54 mm basic grid.
| Switching current | 2 A |
|---|---|
| Number of contacts | 2 changeover contacts (2 form C / DPDT) |
| Mounting type | Through Hole Type (THT) |
| Basic grid | 2.54 mm |
| Contact material | Silver-nickel, gold-covered |
| Maximum switching voltage (DC) | 220 Vdc |
| Maximum switching voltage (AC) | 250 Vac |
| Electrical endurance (Resistive load) | min. 2.5 x 10^6 operations |
| Ambient temperature | -55° C ... +85° C |
Typical applications include communications equipment linecards, analog/ISDN/xDSL PABX, Voice over IP, office equipment, measurement and control equipment, consumer electronics, set top boxes, HiFi, medical equipment, and automotive equipment.
No, the MT2 Relay 108-98006 is non-polarized.
The standard version has a coil power consumption of 550 mW.
