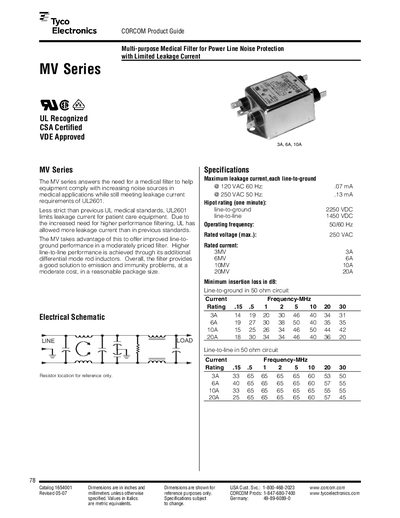

The MV series answers the need for a medical filter to help equipment comply with increasing noise sources in medical applications while still meeting leakage current requirements of UL2601. Less strict than previous UL medical standards, UL2601 limits leakage current for patient care equipment. Due to the increased need for higher performance filtering, UL has allowed more leakage current than in previous standards. The MV takes advantage of this to offer improved line-to- ground performance in a moderately priced filter. Higher line-to-line performance is achieved through its additional differential mode rod inductors. Overall, the filter provides a good solution to emission and immunity problems, at a moderate cost, in a reasonable package size.
The MV series is a multi-purpose medical filter intended to help equipment comply with increasing noise sources in medical applications while meeting UL2601 leakage current requirements. It offers improved line-to-ground performance and higher line-to-line performance through additional differential mode rod inductors, providing a cost-effective solution for emission and immunity problems.
| Maximum leakage current (line-to-ground) @ 120 VAC 60 Hz | 0.7 mA |
|---|---|
| Maximum leakage current (line-to-ground) @ 250 VAC 50 Hz | 13 mA |
| Hipot rating line-to-ground | 2250 VDC |
| Hipot rating line-to-line | 1450 VDC |
| Operating frequency | 50/60 Hz |
| Rated voltage (max.) | 250 VAC |
The MV series helps equipment meet the leakage current requirements of UL2601.
Yes, the MV takes advantage of relaxed standards to offer improved line-to-ground performance in a moderately priced filter.
Higher line-to-line performance is achieved through additional differential mode rod inductors.
