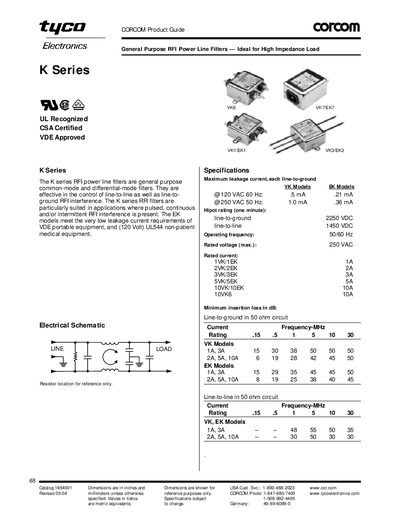

CORCOM K Series RFI Power Line Filters are general purpose common-mode and differential-mode filters. They are effective in the control of line-to-line as well as line-to-ground RFI interference. The K series RFI filters are particularly suited in applications where pulsed, continuous and/or intermittent RFI interference is present. The EK models meet the very low leakage current requirements of VDE portable equipment, and (120 Volt) UL544 non-patient medical equipment.
The document details the Tyco CORCOM K Series of general-purpose common-mode and differential-mode RFI power line filters. These devices are designed to control line-to-line and line-to-ground interference in high impedance load applications, including pulsed or intermittent noise environments.
Specific attention is given to the EK models, which meet strict low leakage current requirements for VDE portable equipment and UL544 non-patient medical equipment. The guide lists electrical specifications such as maximum leakage current, hipot ratings, operating frequencies, and rated currents ranging from 1A to 60A.
| Operating frequency | 50/60 Hz |
|---|---|
| Rated voltage (max) | 250 VAC |
| Maximum leakage current @ 120 VAC 60 Hz | VK: 5 mA, EK: .21mA |
| Maximum leakage current @ 250 VAC 50 Hz | VK: 1.0mA, EK: .36 MA |
| Hipot rating line-to-ground | 2250 VDC |
| Hipot rating line-to-line | 1450 VDC |
EK models meet very low leakage current requirements of .21mA at 120 VAC and .36 mA at 250 VAC.
The EK models meet the requirements of (120 Volt) UL544 non-patient medical equipment.
The maximum rated voltage for the K Series RFI power line filters is 250 VAC.
