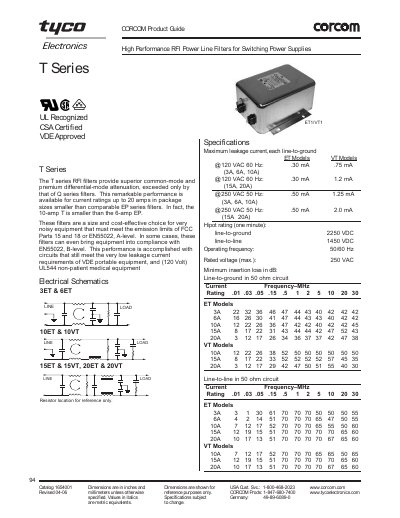

The document describes the CORCOM T Series RFI Power Line Filters designed for switching power supplies. These filters offer superior common-mode and differential-mode attenuation with current ratings up to 20 amps in compact package sizes smaller than comparable EP series filters.
The datasheet provides detailed electrical specifications including maximum leakage currents, hipot ratings, and insertion loss data across various frequencies for ET and VT models. It also lists case style dimensions and part numbers for different amperage ratings.
| Maximum leakage current @120 VAC 60 Hz (ET Models) | .30 mA |
|---|---|
| Operating frequency | 50/60 Hz |
| Rated voltage (max.) | 250 VAC |
| Hipot rating line-to-ground | 2250 VDC |
The T series RFI filters provide performance for current ratings up to 20 amps.
These filters are suitable for equipment that must meet the emission limits of FCC Parts 15 and 18 or EN55022, A-level.
