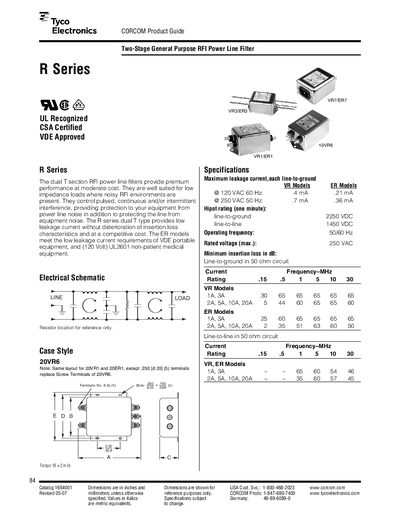

This dual T section RFI power line filter provides premium performance at moderate cost. They are well suited for low impedance loads where noisy RFI environments are present. They control pulsed, continuous and/or intermittent interference, providing protection to your equipment from power line noise in addition to protecting the line from equipment noise. The R series dual T type provides low leakage current without deterioration of insertion loss characteristics and at a competitive cost. The ER models meet the low leakage current requirements of VDE portable equipment, and (120 Volt) UL2601 non-patient medical equipment.
The document describes the dual T section RFI power line filters in the R Series, which provide premium performance at a moderate cost. These filters are designed for low impedance loads in noisy environments to control pulsed and continuous interference while protecting equipment from power line noise. The series includes VR models and ER models that meet specific leakage current requirements.
| Maximum leakage current (VR Models) @ 120 VAC 60 Hz | 4mA |
|---|---|
| Hipot rating line-to-ground | 2250 VDC |
| Operating frequency | 50/60 Hz |
| Rated voltage (max.) | 250 VAC |
ER models meet the low leakage current requirements of VDE portable equipment.
Yes, they are UL Recognized and CSA Certified.
