The K series RFI power line filters are general purpose common-mode and differential-mode filters. They are effective in the control of line-to-line as well as line-to- ground RFI interference. The K series RFI filters are particularly suited in applications where pulsed, continuous and/or intermittent RFI interference is present. The EK models meet the very low leakage current requirements of VDE portable equipment, and (120 Volt) UL544 non-patient medical equipment.

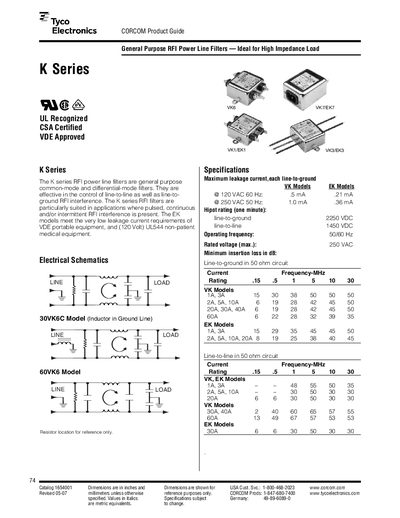

This document provides a product guide for the K Series of general-purpose RFI (Radio Frequency Interference) power line filters manufactured by Tyco Electronics. These filters are designed to control both line-to-line and line-to-ground interference, making them suitable for applications involving pulsed, continuous, or intermittent RFI.
| Maximum leakage current (120 VAC) | 5 mA for VK Models, 21 mA for EK Models |
|---|---|
| Certifications | UL Recognized, CSA Certified, VDE Approved |
The filters are effective in controlling line-to-line as well as line-to-ground RFI interference.
The EK models meet the very low leakage current requirements of VDE portable equipment.
